Puzzle box Christmas gift

A Christmas present with a twist - to get the gift, you'll have to hack the giftbox

Published on . Takes about 8 minutes to read.

Here’s a gift box I built for this Christmas. A wooden box, locked with a combination lock. To get the code of the lock (and the gift inside), one has to get the box open… somehow… without knowing the lock combination.

Why do this

I wanted to make obtaining the gift just a bit challenging - this would make the reward more satisfying. Idea of a locked box w/ combination lock fit well, as making a puzzle to disclose a password is doable enough. Oddly, I couldn’t find a small lockable box from local nor online stores, so I built one.

The build

I’m no woodworker, and did this in the living room, with limited tooling available. The build is rough. I discovered plenty of small tips how to make my next box cleaner, but that’s for another time.

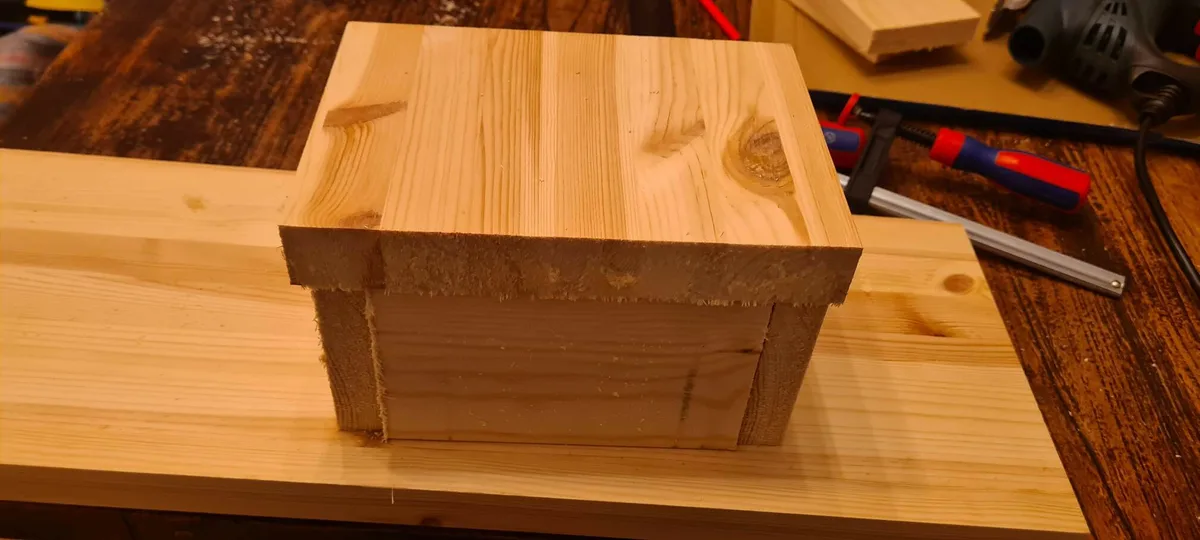

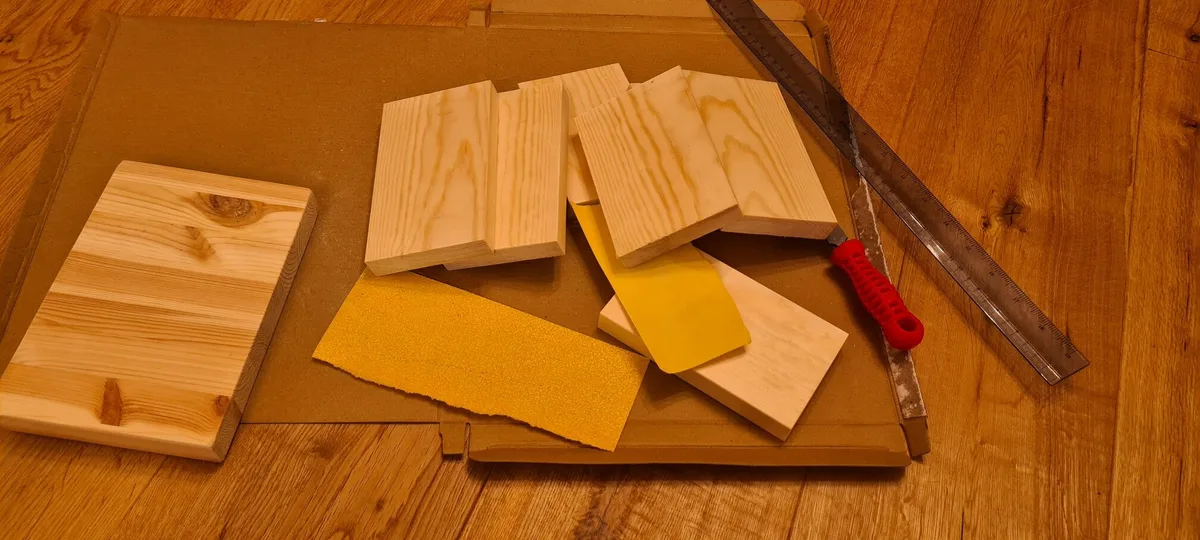

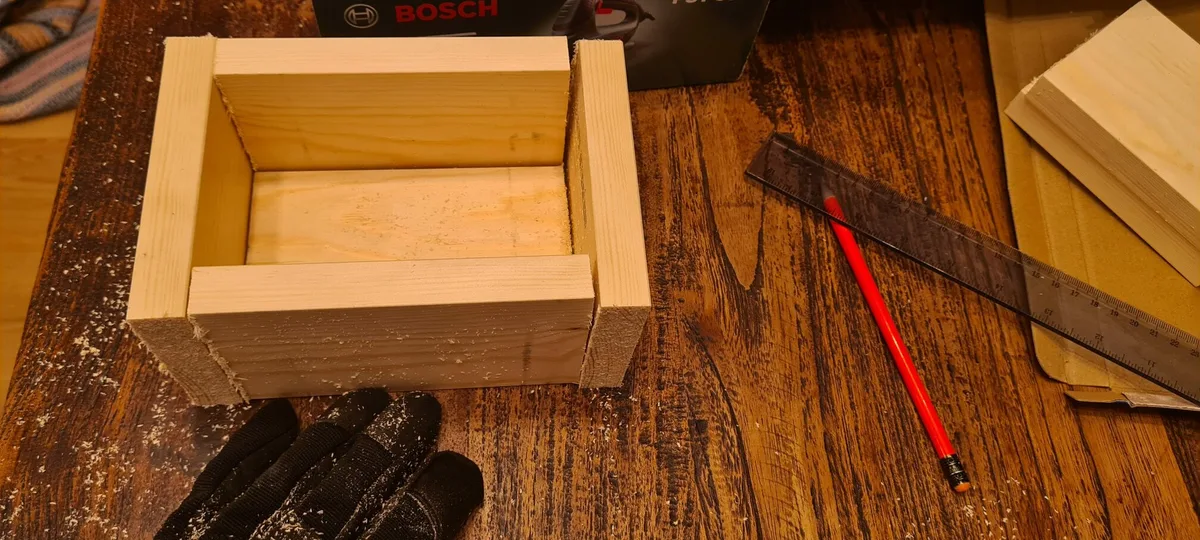

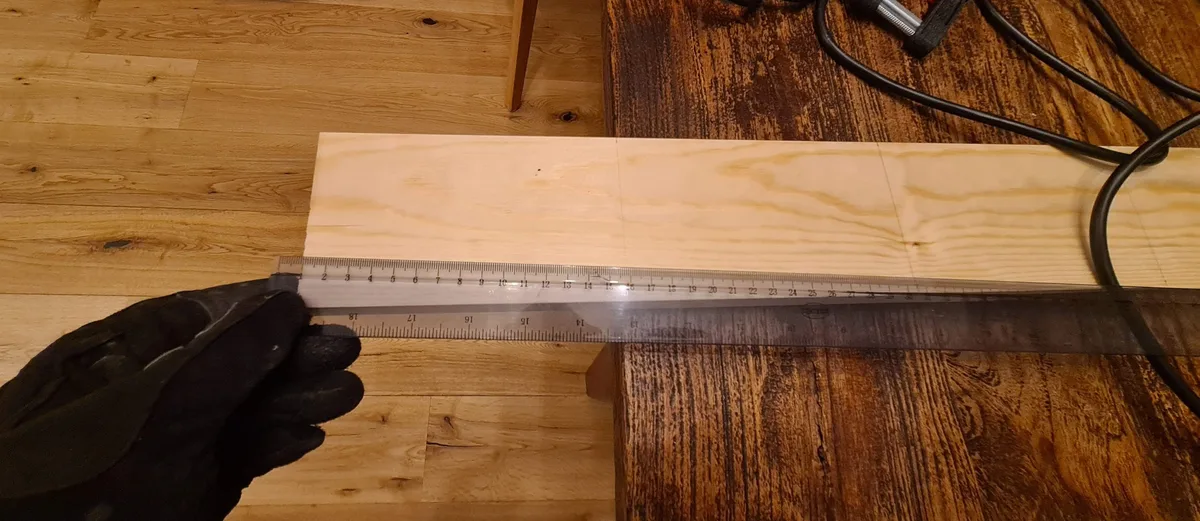

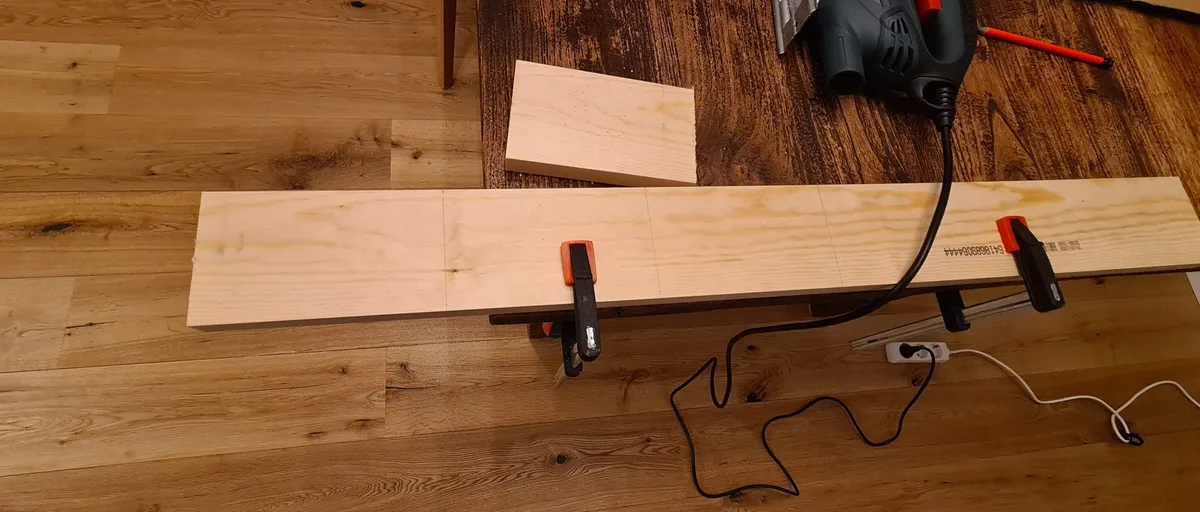

(above) I started by cutting a length of 90cm x 2cm x 100cm pine board into ~15cm pieces, fitting the pieces together into a box, then sanding the edges. Box lid was made of a bit larger and thicker pine. A heavier lid was needed in order to fit the loops for the lock without splitting the wood, but was a mistake in retrospect, as this took the center of gravity for the box too high - it would tip over when empty and open.

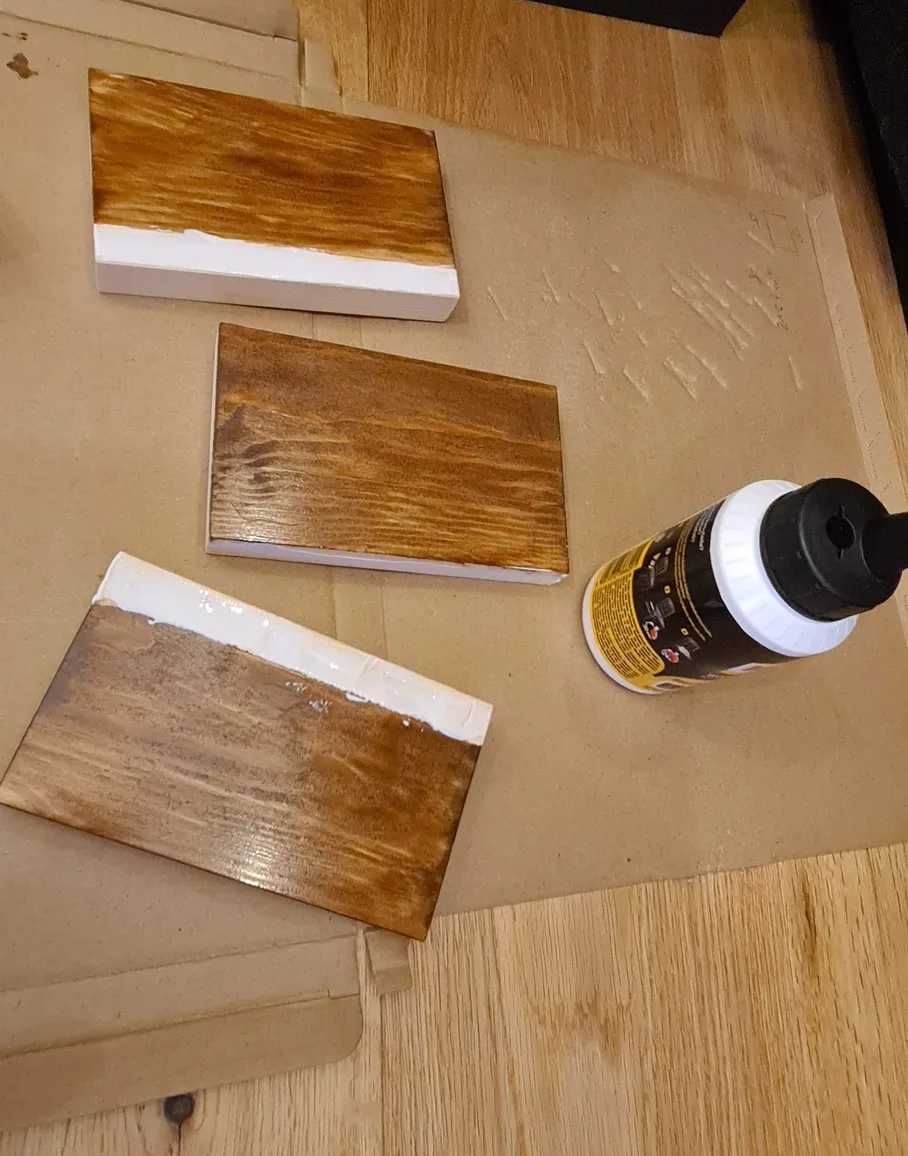

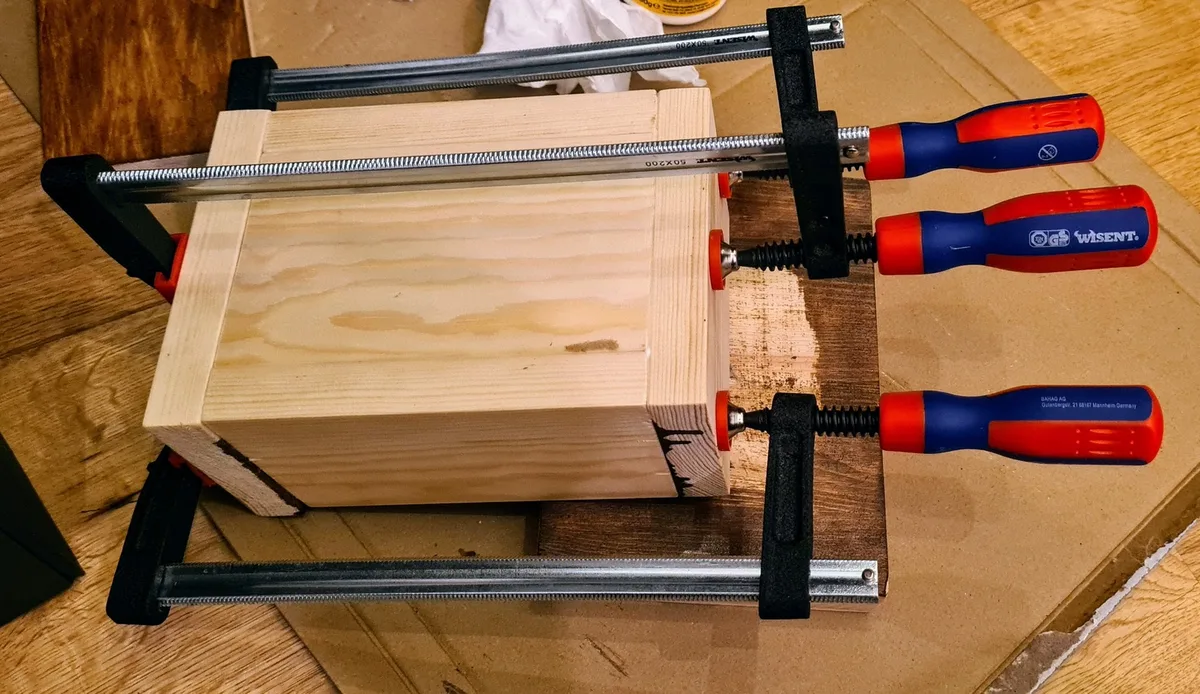

(above) I pained the inside with an oil-based glossy dark brown wood oil, and the outside with water-based dark brown wood pigment. The pieces are glued together with wood glue.

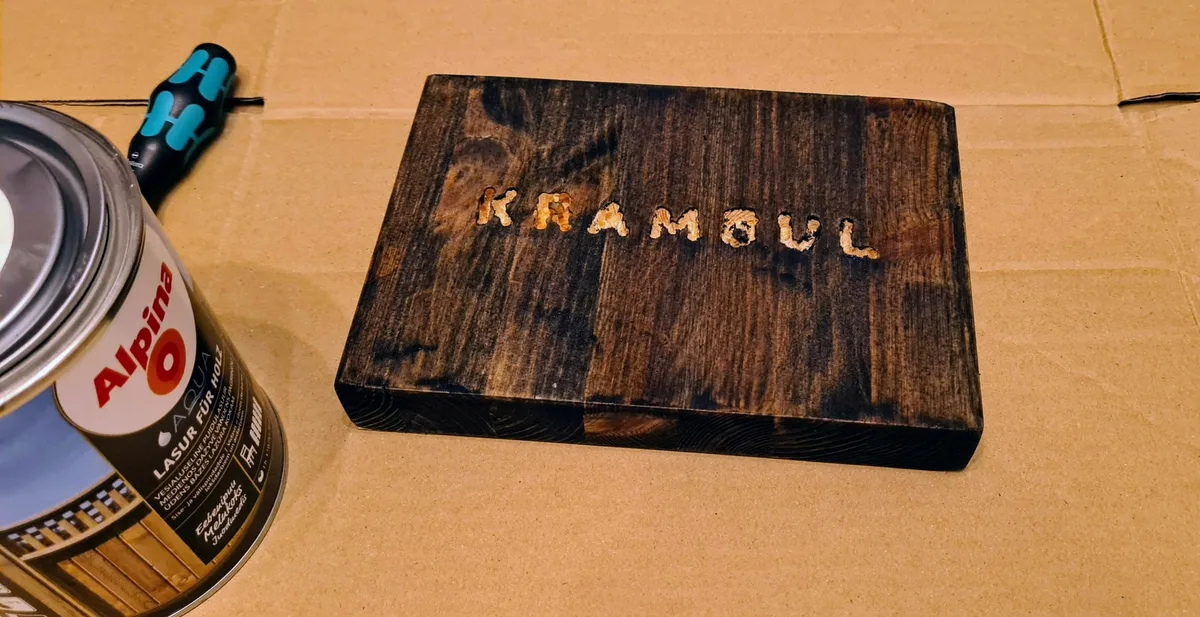

(above) I wanted to engrave a name into the lid of the box. First attempt of this did not look nice - the text was very small, and I used a regular drill to engrave the wood. The drill was too big for the too-small letters. Result was sloppy-looking (if artistic), uneven edges, with some of the “freestanding” bits in letters like R (the middle outcrop) breaking off.

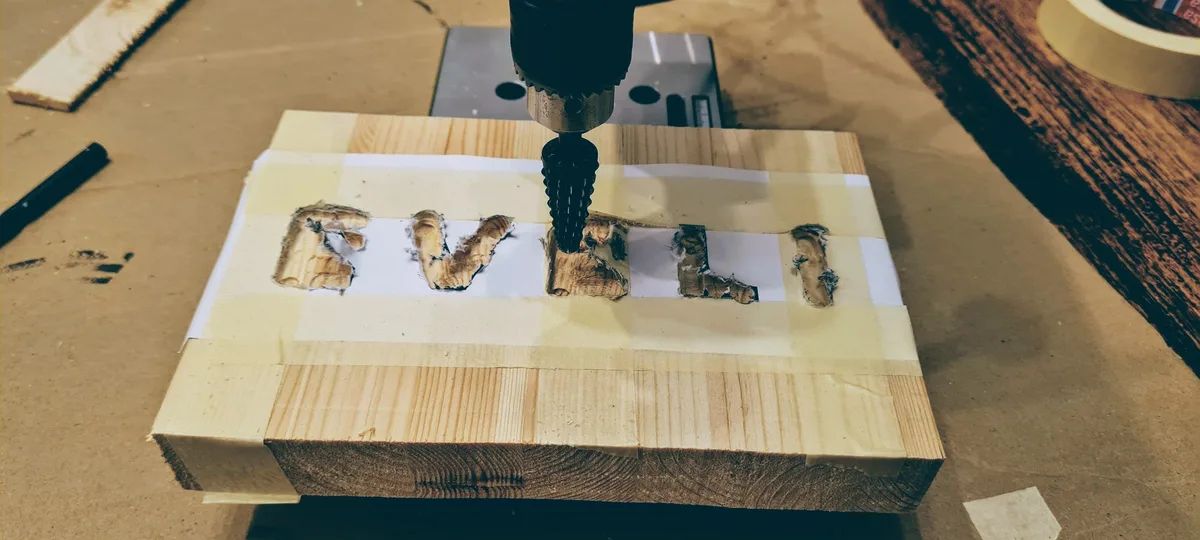

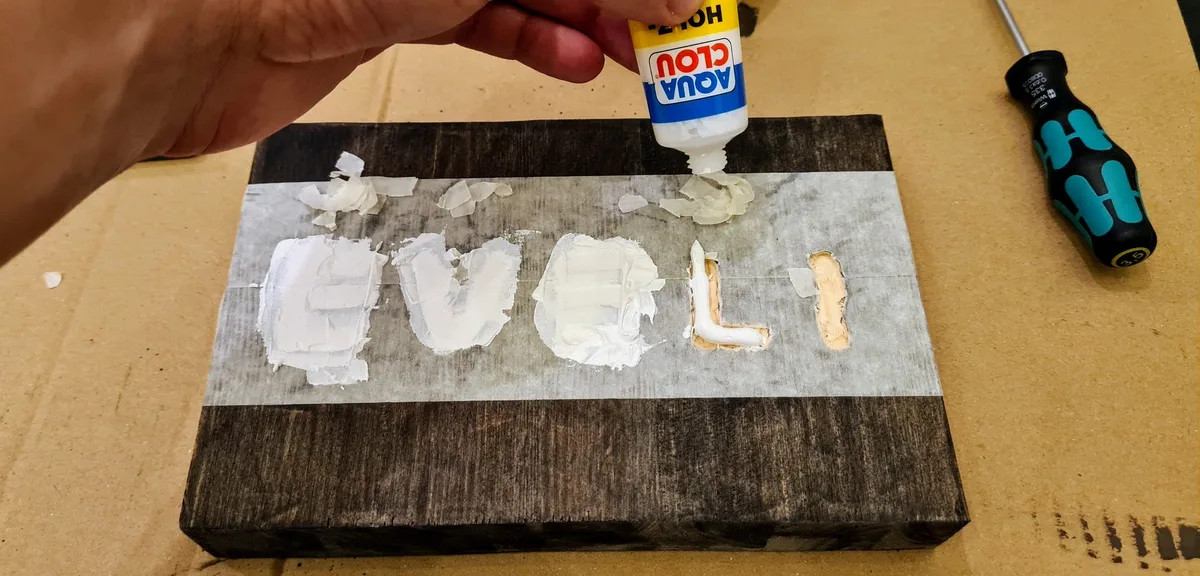

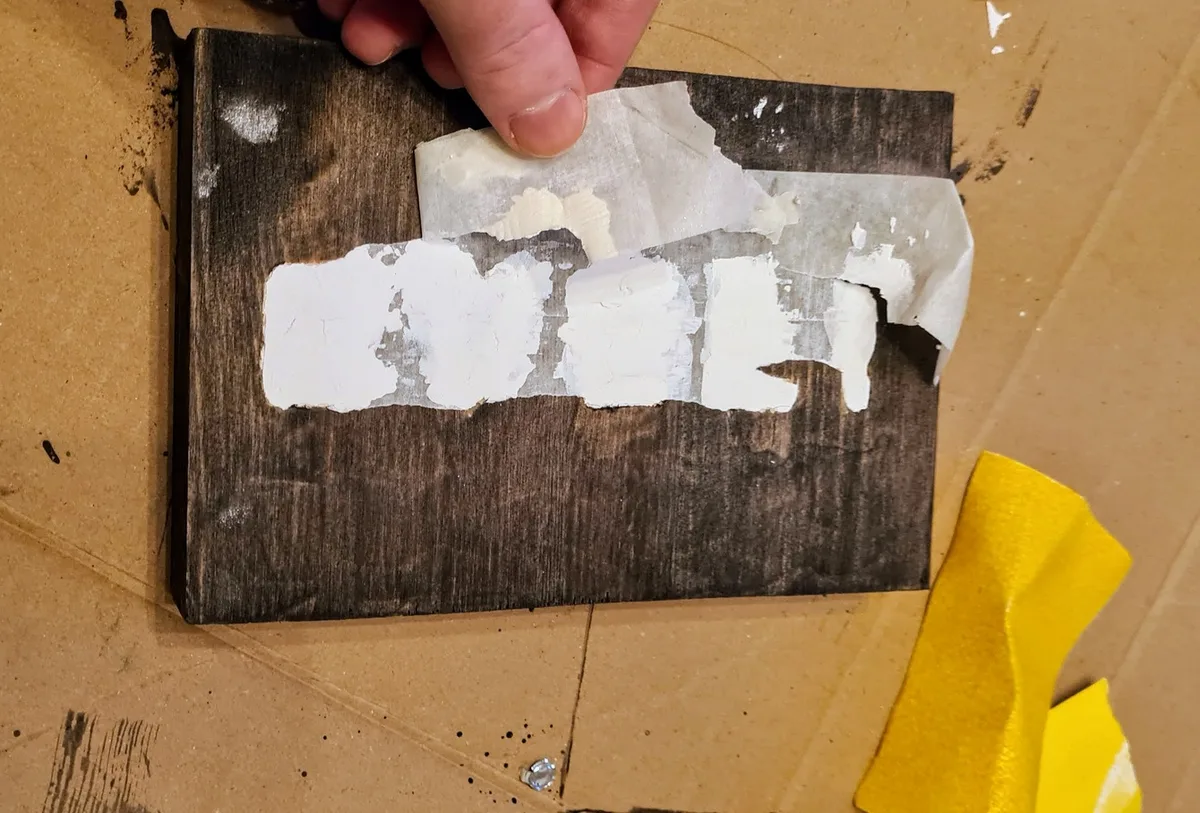

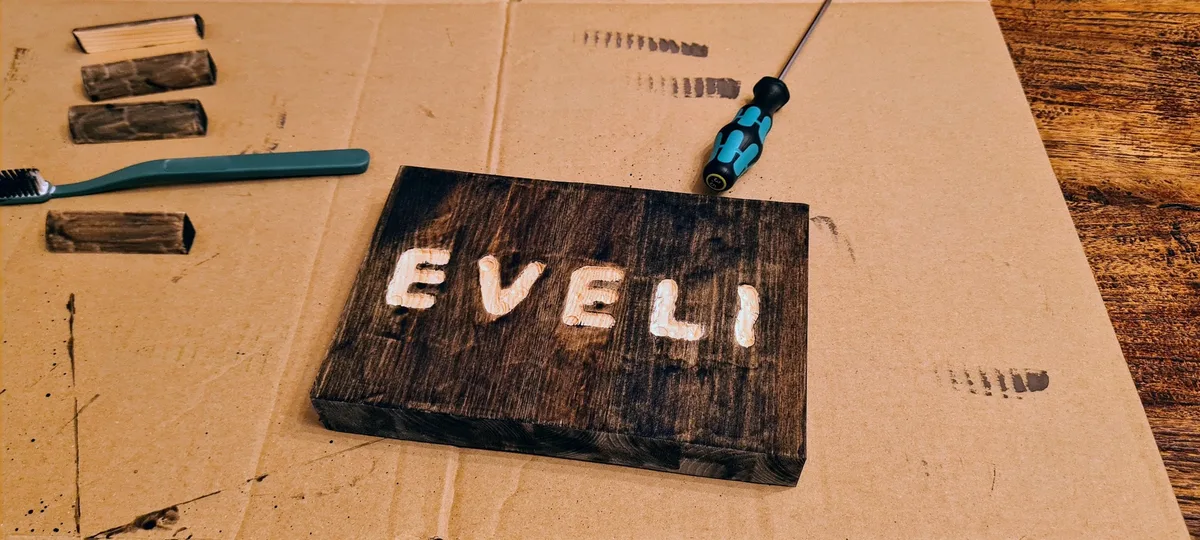

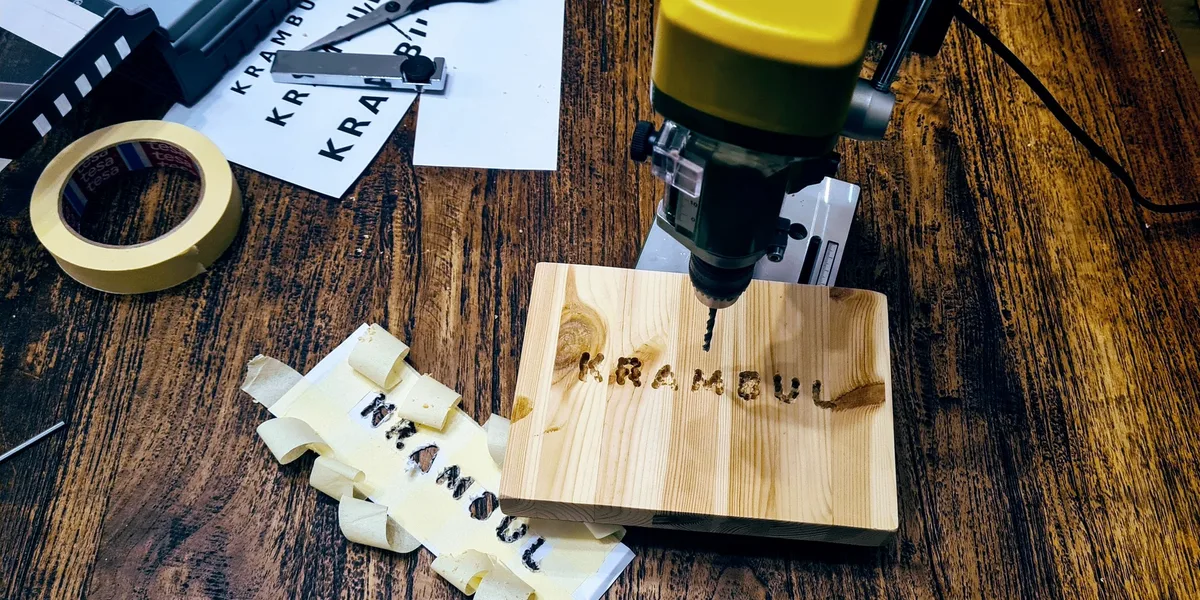

(above) I got a better drill meant for sideways engraving from the hardware store, and used bigger letters with more straight edges (no freestanding bits) - result looked much better. I filled the engraved letterings with white filler meant for fixing indents in wood, then let it dry and sanded the top. The result - nicely freestanding, filled out lettering.

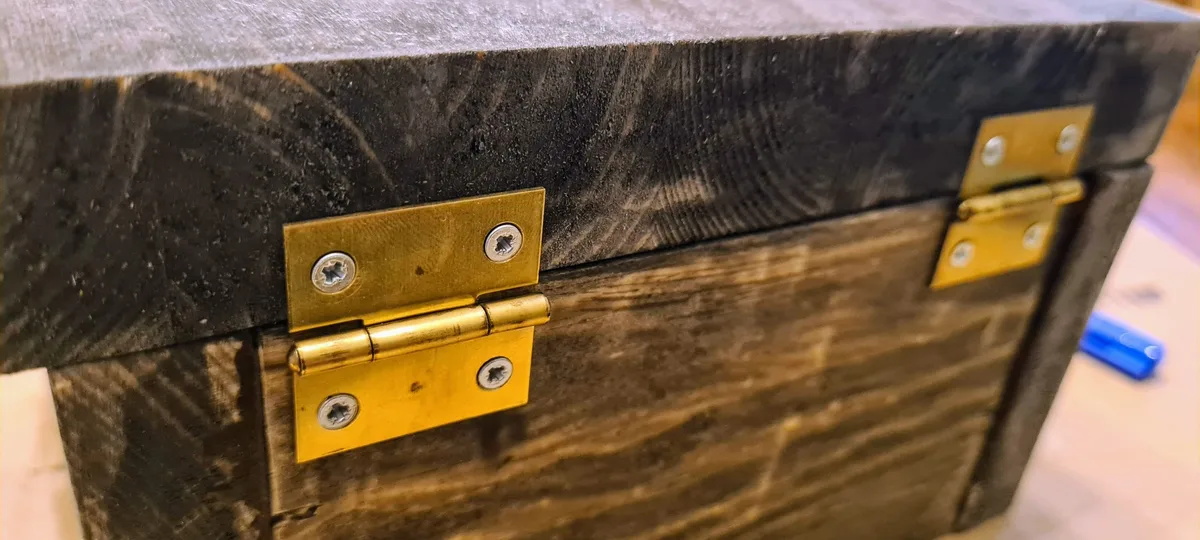

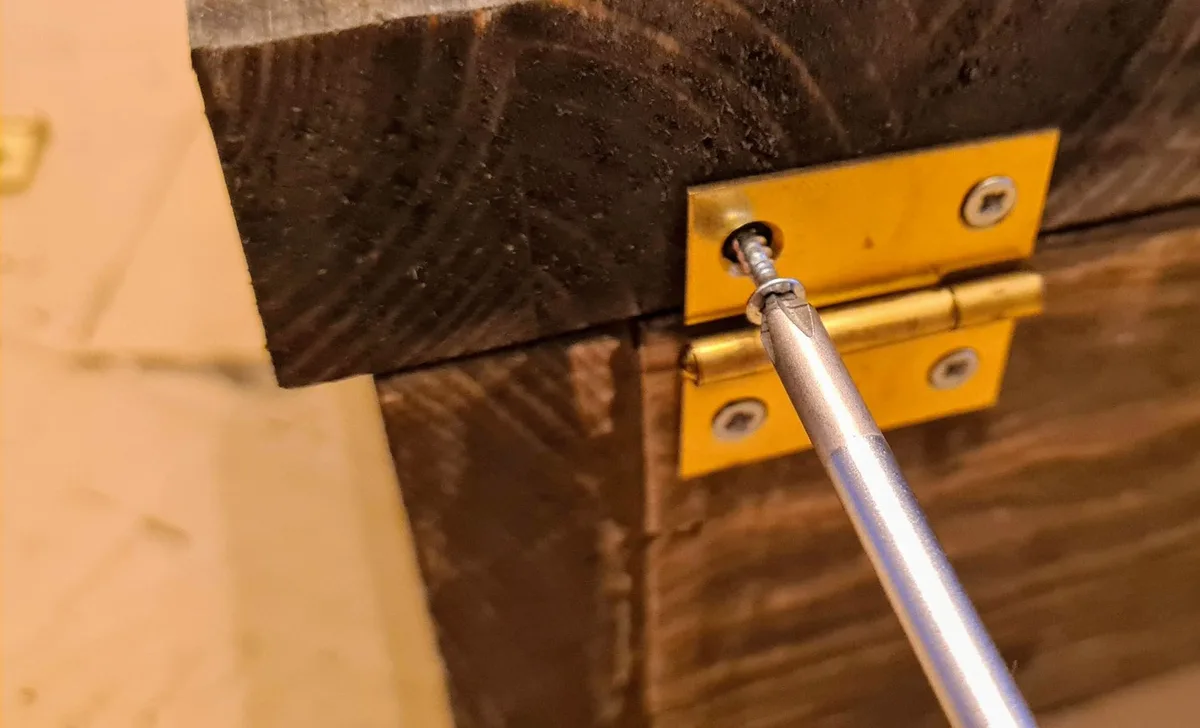

(above) I attached small brass hinges to the backside of the box.

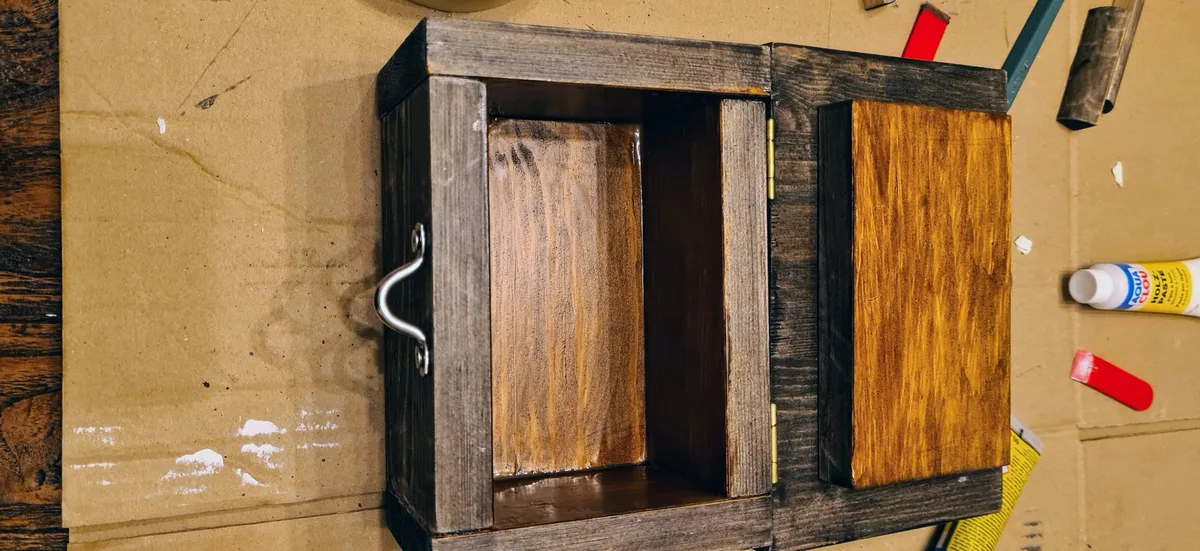

(above) Finishing touches - fully oiled and attaching front-facing loops for the lock. Sadly, I had to forgo adding a box-lid inlay piece, as this would have messed up the center of balance even further.

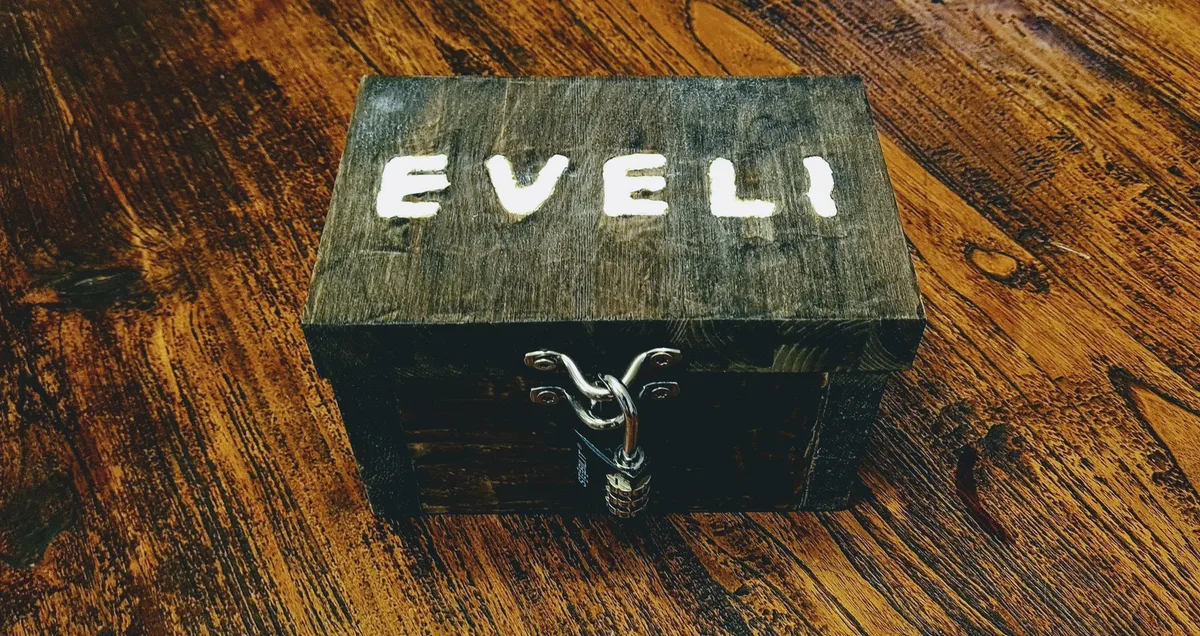

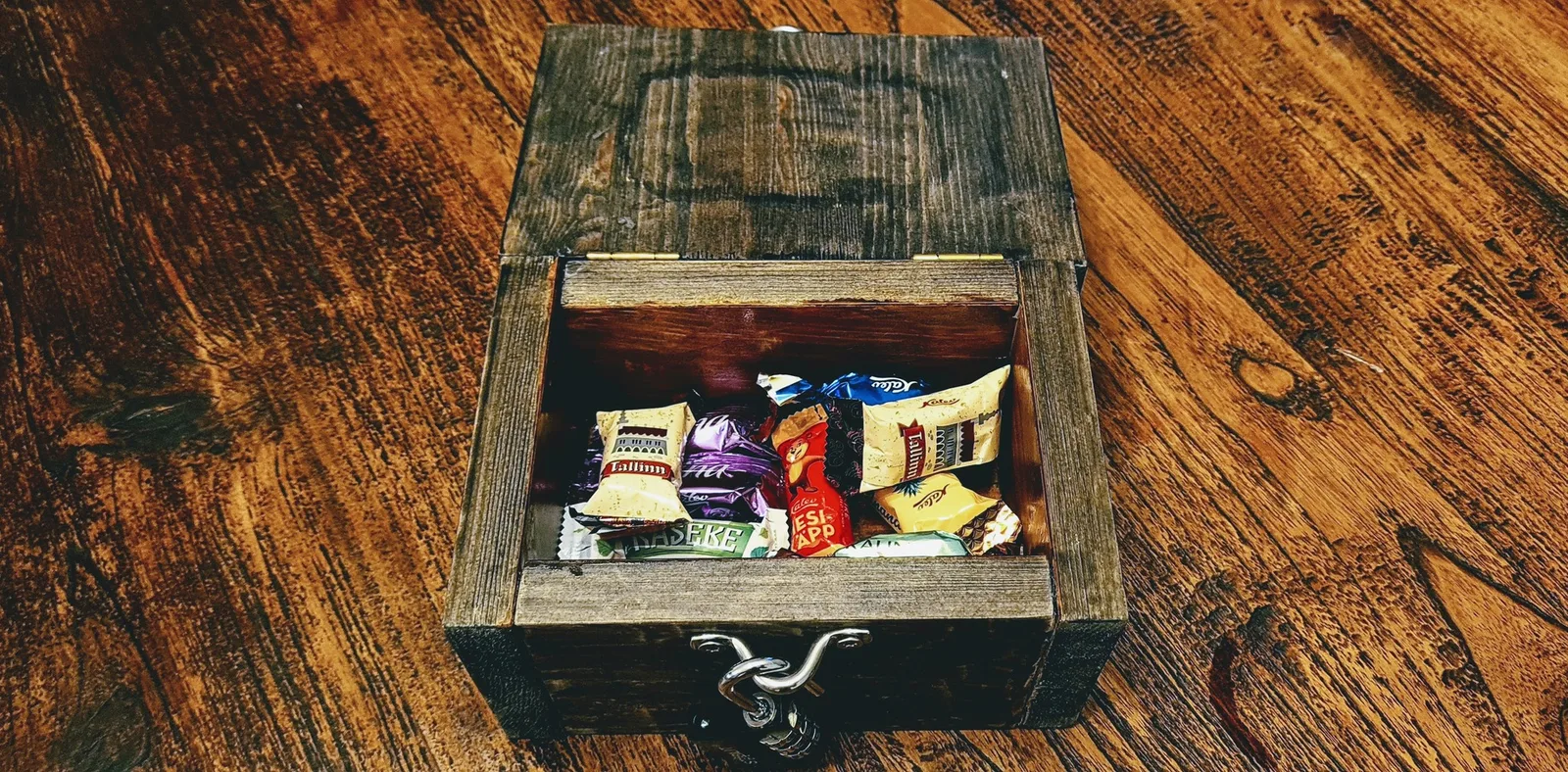

(above) The box is complete. There are plenty of areas where I knew I could do better (paint drips, uneven sanding, balance and weight…), but as this was my very first box and the point wasn’t to get it perfect, I let it be. Regardless, the final result looks rather nice.

Guess the code

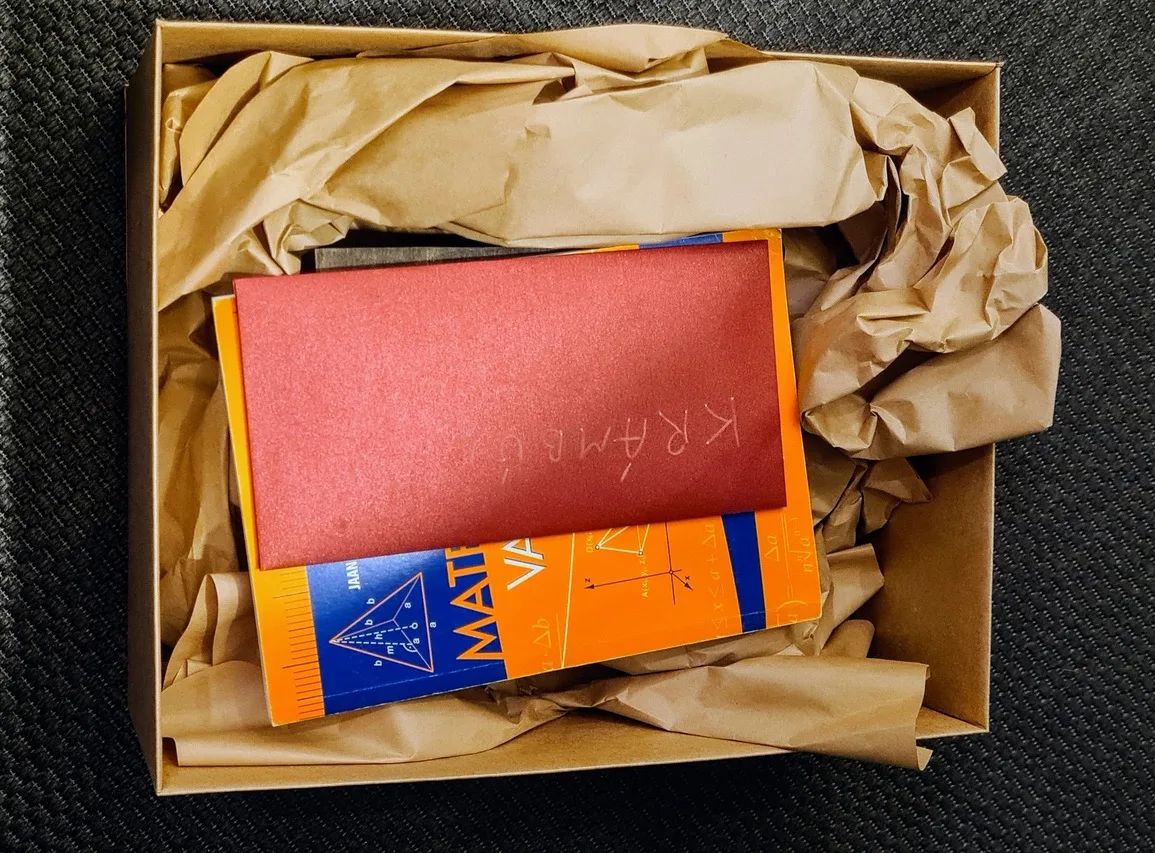

(above) The box would go under the Christmas tree locked with a combination lock. In the box would also be a sheet with Maths tasks as well as a formula book. In order to open the box, you’d need to solve the math.

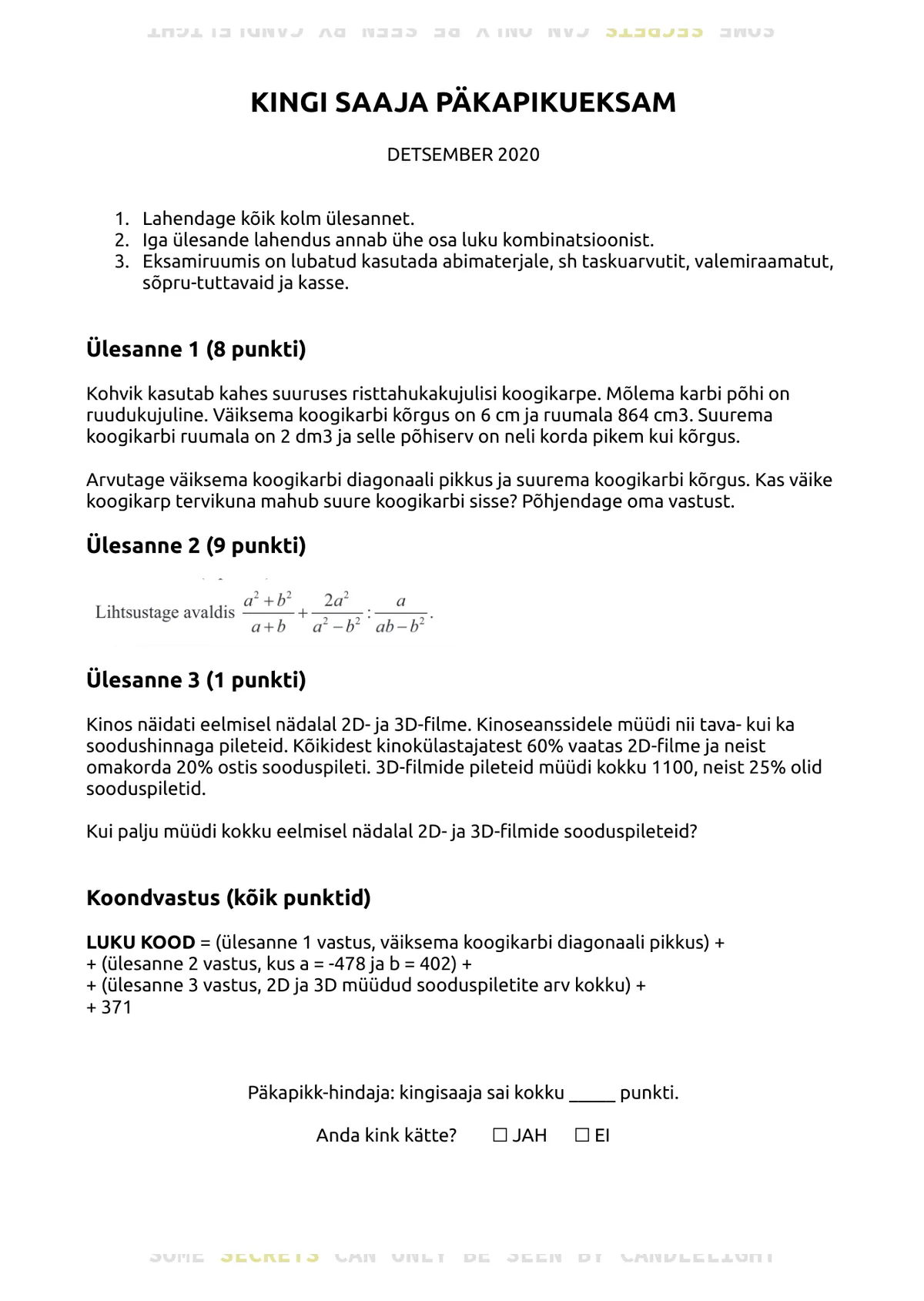

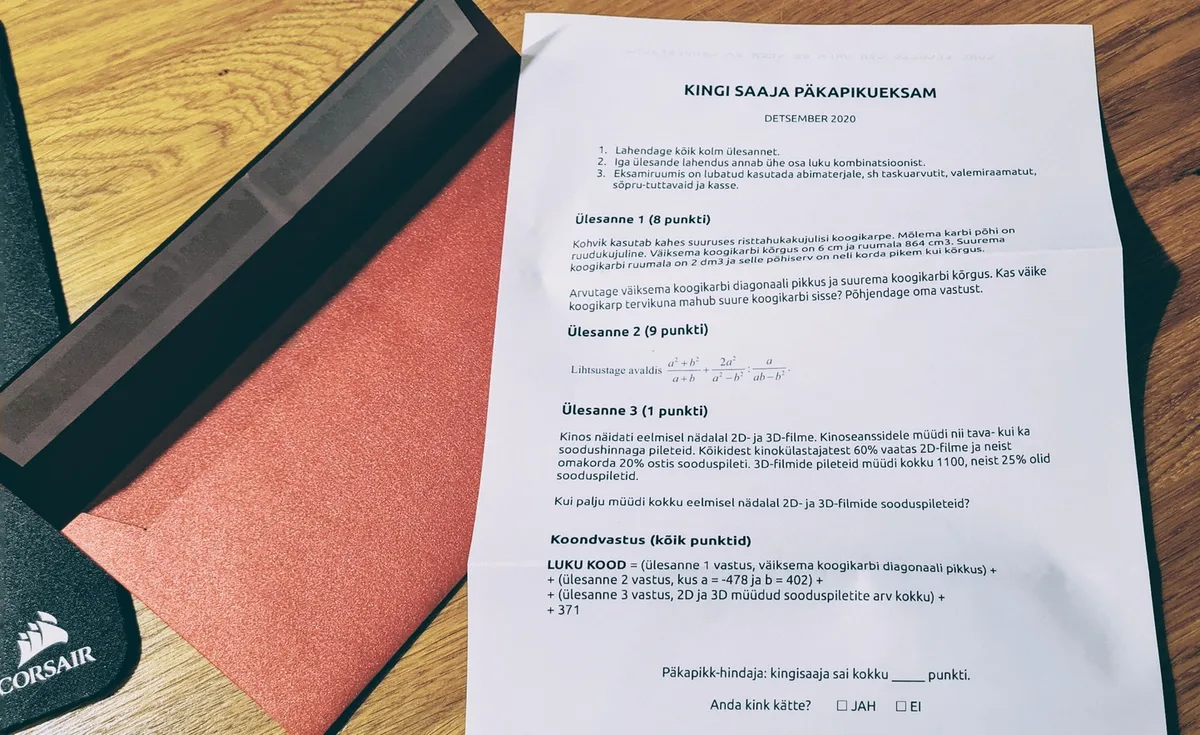

(above) I took the Maths problems from Estonian national Maths exam for high-schoolers, from last year (see: Math exam problems and answers for 2019 year). I picked problems that were relatively easy to solve, and also tested them on friends - the goal was to offer a slightly complex challenge, but not to frustrate people.

Solving all three problems would give you the three-digit combination of the lock; and you’d be able to open the box.

Ways to open the box

Having learned from Girlfriend Puzzle, I wanted to make it possible to open the box in multiple different ways. Again - to avoid frustration. The point wasn’t so much to solve the Maths puzzles, but to think outside the box (pun intended) and hack it (yes - I’m deviously trying to get the hacker mindset into gf).

These were the different ways how to get into the box:

  • Solve all three Maths problems and get the combination
  • There are 3 problems on the assignment sheet, each one giving X points (listed). Realize the numbers of points for the three tasks are actually individual numbers in the lock combination. Permute and open the lock.

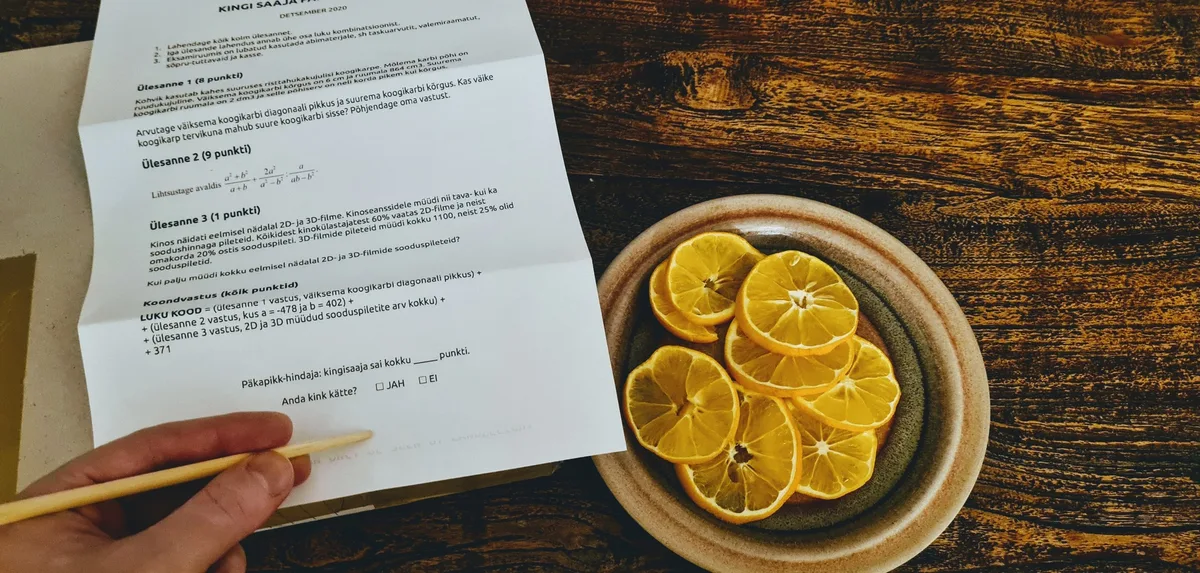

  • Top and footer of the assignment sheet has, in faint letters the text: “Some SECRETS are only visible by candlelight”. Realize this means invisible ink - I wrote the combination to the paper with lemon juice. Heating the paper would yield the answer.
  • Unscrew back hinges (I left hinges on the outside on purpose)
  • Unscrew front lock loops (requires Torx screw head - on purpose)
  • Use online tools (Wolfram Alpha) to solve the Maths problems
  • Google the text of the assignments, discover it’s from national exams - with answer sheet included
  • Ask friends and family to help with solving Maths (distributed computing)
  • Outright guess the combination (it’s a significant, guessable number - a terrible password)
  • Physically break the box

How it played out

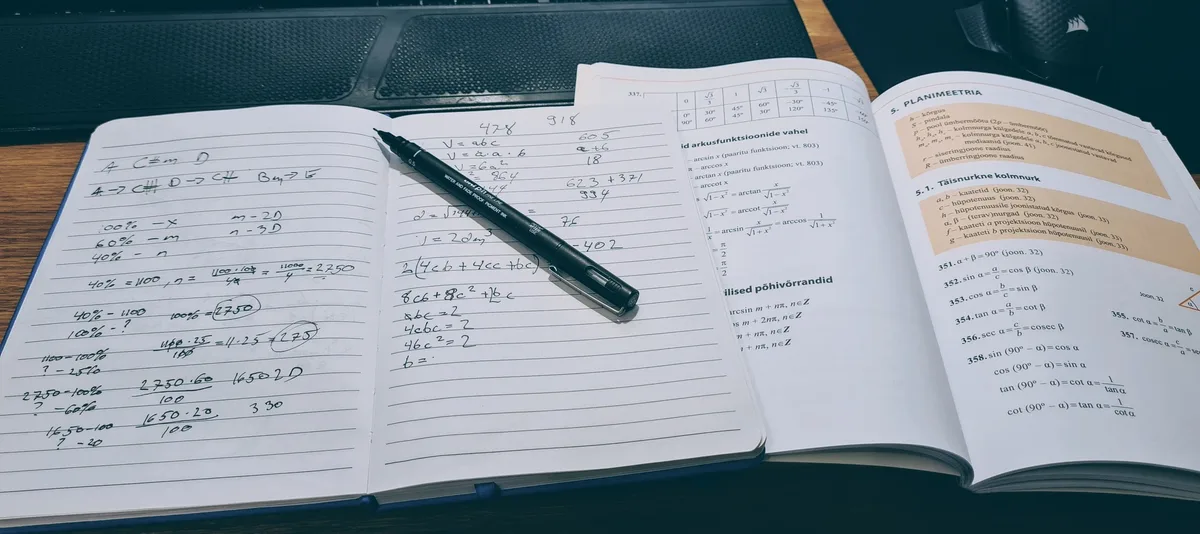

The box was opened via a combination of brute-forcing and solving Maths - friends and family helped to solve most of the Maths problems, getting the answer “900”. As there were only 99 possible other combinations, they were brute-forced without solving the last Maths problem, and the box was opened.

Overall, the present-puzzle was a success, and - I think - the gift was appreciated.

Ho-ho-ho =)
